Throttle Jack Router Template and Stencil

Have you ever tried to inset your UP5 Throttle Face Place into your fascia? Getting the inset cut just right can be difficult. Prawn Designs makes a router Template and Stencil set to help.

UP5 Router Template Set

The UP5 Template Set is made up of two parts, the Template and a pair of stencils.
(NOTE: These two stencils have been combined into one.)
UP5 Router Template UP5 Stencil

The UP5 Template and Stencil set is designed to help guide your router to make a perfectly sized hole to inset a UP5 Face Plate. Note, if you are using a stock UP5 Face Plate you will need to square the corners with a wood chisel.

At the bottom of this page, below the parts list, is a guide to help you understand how to use the Template and Stencil.



Ordering

To place an order send an email to orders@prawndesigns.com . Include a list of what you want to order and your shipping address. We will get back to you with an estimate of when we will have your order ready to ship and shipping costs.



Part Number Title and Description Price Image

PD-21001

PD-21017

PD-21018

Free-mo Fitter Rail Tool

The fitter rail gap measuring tool and fitter rail cutting guide. Used to help measure and cut in 1/16 inch increments.

I make the Fitter Rail Tool in with three different step sizes.

  • PD-21001 Free-mo Fitter Rail Tool 0.0625" (1/16") Steps
  • PD-21017 Free-mo Fitter Rail Tool .040" (~1.0mm) Steps
  • PD-21018 Free-mo Fitter Rail Tool 1.0mm (~ 0.040") Steps

$8.00 PD-12001 Hex Board Style 1 Bundle

PD-21002

HO Scale Rolling Stock Weight Rule

No more calculating to determine the correct weight for rolling stock, just sit the car down on the HO Scale Rolling Stock Weight Rule and read what the correct weight should be.

$10.00 PD-12001 Hex Board Style 1 Bundle

PD-21016

N Scale Rolling Stock Weight Rule

No more calculating to determine the correct weight for rolling stock, just sit the car down on the N Scale Rolling Stock Weight Rule and read what the correct weight should be.

$7.50 PD-12001 Hex Board Style 1 Bundle

PD-21003

Optical Detector Mount

Easy mounting of an OPB704W optical detector. Easy mounting in a 1" round hole. There are different mounts that leave the detector sticking different distances out the top of the mount. The detector should extend the thickness of the ties. There are two mounting options. Flush mount to the top of the road bed or with a 1.25" square of 1/8" thick birch plywood cut into the roadbed so that the top is flush with the top of the roadbed.

  • Flush, 0.00 inches
  • CVMW - Central Valley Model Works, 0.065"
  • ME - Micro Engineering, 0.084"
  • Peco - Peco, 0.080"

Other distances available upon request.

$2.00

PD-21004

HO Double Track 2" Spacing Tool

This is a tools to help space your tracks exactly 2" on center. It is made from clear acrylic so that you can see the track as you are putting them down. There are two large holds to allow you to spike the inner rail. There is a line at the 1" set back point for Free-mo module ends.

$6.00 HO Scale Rolling Stock Weight Rule

PD-21005

UP5 Face Plate, Baltic Birch Plywood, Blank

$1.50 PD-12001 Hex Board Style 1 Bundle

PD-21006

UP5 Face Plate, Baltic Birch Plywood, Custom Engraved

1/8" acrylic available at $3.00 each.

$2.00 PD-12001 Hex Board Style 1 Bundle

PD-21007

UP5 Router Template

Router Template to inset a UP5 Throttle Jack into the Fascia.

$10.00 PD-12001 Hex Board Style 1 Bundle

PD-21008

UP5 Stencil

Once you have routered a space in the fascia for the Face Plate you need to cut a hole for the throttle jack to stick into. This stencil helps to define where that hole is. Drawn lines for the 4 sides and mark the location to drill for the holes for the four corners.

NOTE: This has been updated from a two piece stencil set to a single stencil. The new image is coming.

$4.00 PD-12001 Hex Board Style 1 Bundle

PD-21009

UP5 Router Template & Stencil Set

A set the include both the UP5 Router Template and the UP5 Stencil, PD-21007 and PD-21008.

$12.00 PD-12001 Hex Board Style 1 Bundle

PD-21010

NCE / Tony's Router Template

Router Template to inset a NCE / Tony's Throttle Jack into the Fascia.

$10.00 PD-12001 Hex Board Style 1 Bundle

PD-21011

NCE / Tony's Stencil

Once you have routered a space in the fascia for the Face Plate you need to cut a hole for the throttle jack to stick into. This stencil helps to define where that hole is. Drawn lines for the 4 sides and mark the location to drill for the holes for the four corners.

$4.00 PD-12001 Hex Board Style 1 Bundle

PD-21012

NCE / Tony's Router Template & Stencil Set

A set the include both the NCE / Tony's Router Template and the NCE / Tony's Stencil, PD-21010 and PD-21011.

$12.00 PD-12001 Hex Board Style 1 Bundle

PD-21013

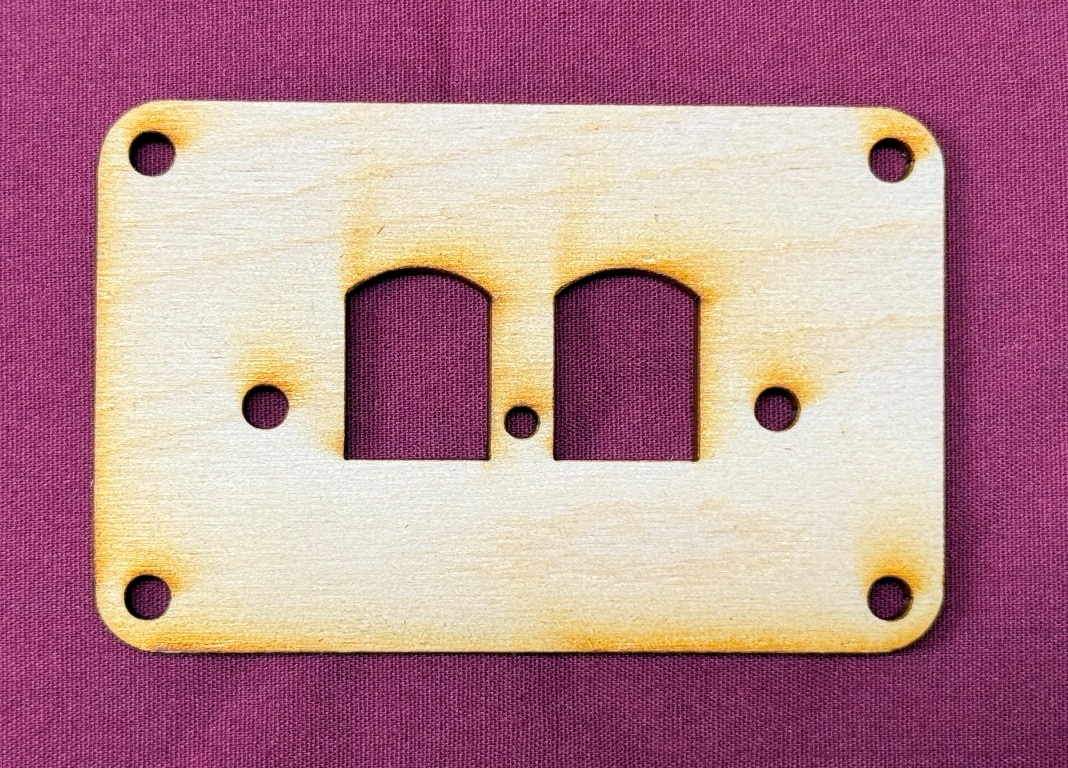

NCE / Tony's Face Plate, Baltic Birch Plywood, Blank

$1.50 PD-21013 NCE Face Plate Blank

PD-21014

NCE / Tony's Face Plate, Baltic Birch Plywood, Custom Engraved

$2.00 PD-21014 NCE Face Plate

PD-21015

Track Height Tool

The Track Height Tool has two parts, a stick and a cart. The stick has graduations on it to help set the carts on multiple sticks to the same height off the track. The cart has a zero mark and graduation in 1/16 of an inch increments both positive and negative. Once the cart is zeroed you can directly read the laser and see if the module needs to move up or down and how far it needs to move.

$10.00 Track Height Tool

PD-21019

Lily Pad, Switch Machine Mount

Mounting board for a Tortoise Slow-Motion Switch Machine.

Tortoise Slow-Motion Switch Machine is a Trade Mark of Circuiton (http://www.circuitron.com)

$2.50

PD-21020

Lily Pad, Switch Machine Mount, Drilling Guide

Drilling guide for the PD-21019 Lily Pad, to get perfect alignment of the switch machine to the switch.

$3.00

PD-21027

Turnout Switch Control Board, (1 to 5)

Only need one or two, $1.25 per unit.
If you are buying 4 or more, save money and get 6 (PD-21028).

Micro switch NOT included.

$1.25 each Switch PC Board

PD-21028

Turnout Switch Control Board, (6 to 11)

If you need 6 to 11 the price is $0.75 per unit.
If you are buying 9 or more, save money and get 12 (PD-21029) for the same price.

Micro switch NOT included.

$0.75 each Switch PC Board

PD-21029

Turnout Switch Control Board, (12 or more)

Buying 12 or more they are only $0.50 each.

Micro switch NOT included.

$0.50 each Switch PC Board

PD-21031

Free-mo Leg Pocket Set, one pair, kit.

Two Leg Pockets, enough for one end of a module. Bolt and leg not included.

$15.00 pair Leg Pocket

UP5 Template and Stencil Guide

Be sure you read the instructions manual that came with your tools and adhere to all the safety procedures. Always wear the correct safety equipment for the tools you are using, including but not limited to eye and hearing protection. The following is offered as a guide and not a complete set of instructions.

All the images are links. Select any image to have a larger copy of the image open in a new Tab or Window.

Note: in this example I am using a piece of scrap wood.

Position and clamp the Template onto the fascia.

Be aware of what is going to be behind the throttle jack. Is there enough space for the throttle jack to extend out the back of the fascia?

You will need a Pattern Bit for your router. The Template is designed for a 1/2 inch diameter Flush Cut Pattern Bit. The bit also needs to be short so that the bearing at the top of the bit will follow the pattern in the template. I use a part number 102-0862B from Eagle America. This bit is only 1/8 inch tall, so it can only cut 1/8 inch deep.

If you want to make a deeper cut check out part number 102-0872B, it is 3/8" tall.

Adjust the bit so that it will only cut as deep as your Face Plate is thick. If using the Prawn Designs UP5 Custom Face Plate from 1/16" Baltic Birch, adjust the router to cut 1/16" deep.

Using the template as a guide. Run the bearing around the edges and then remove all the middle area.

If you are using a Prawn Designs Custom Replacement Face Plate, it should drop in.

If you are using the Face Plate that comes with the Throttle Jack you will have to square the corners. I recommend a wood chisel for this.

Now to make the area to be cut out for the throttle jack. Place the stencil that is a ring into the hole. Use a pencil to draw a line around the inside of the ring.
(NOTE: These two stencils have been combined into one.)

Remove the ring stencil and insert the other stencil. Use an Awl, Pencil, Center Punch or other similar tool to mark the four small holes.

Drill 4 holes at the indicated spots.

Use a jig saw, coping saw or similar tool to cut between the 4 holes along the lines.

You can now assemble your Throttle Jack and install it and run trains
